EV Level 2 portable charging cable with ControlBox 16A with adjustable amperes. Allows charging from main household or public sockets. An easy portable charging solution.

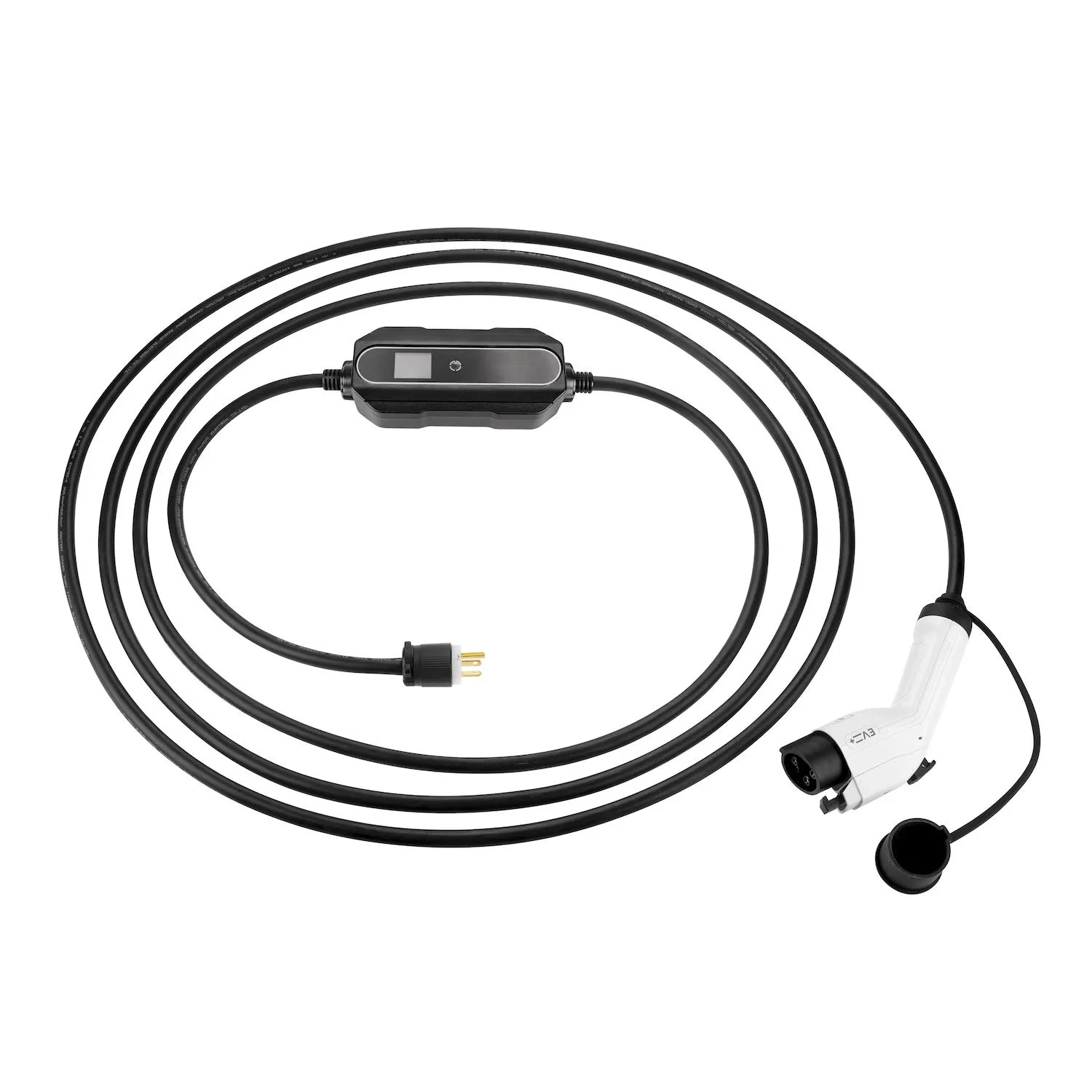

EV Charge+ Level 2 portable charging cable J1772 with control box 16A adjustable
Level 2 portable charger EV cable J1772 is 25 ft in length with ControlBox and adjustable amps. A portable and easy charging solution for when you are traveling or away from a traditional charging station. This cable allows you to charge your EV/PHEV with a J1772 charging port from household or public sockets. There is the option to adjust the amperes: 8A, 10A, 13A, 16A.
Weight
7 lbs
Dimensions
18 × 12 × 6 in
Manufacturer
EV+
Cable Material
Thermoplastic
Plug Type
SAE J1772 (Type 1-Female)
Power
3.8 kW
Maximum Current
16 A
Power Supply
1-Phase
Operational Voltage
250 V/AC
Degree of Protection
IP55
Vandalism-Proof
No
UV Resistant
Yes
Contacts
Copper alloy
Overcurrent Protection
Integrated
Overvoltage protection
Integrated
Under-Voltage Protection
Integrated
Leakage Current Protection
Integrated
Lightning Protection
Integrated
Certificate
CE
Warranty
12 Months
We recommend using the following steps:
Plug in the 3-pin NEMA 5-15 plug from the cable to the main socket
Plug in the J1772 end of the cable to the electric vehicle’s charging socket
After the cable has clicked in place, you are ready for the charge. A green light will appear on the control box that indicates the charging cable is ready to use.
Adjust the amperes as preferred
When you finish with the charge, always disconnect the vehicle side first and then unplug the socket. Always remove the charging cable from the socket when not in use.
How to store:
The charging cable is the lifeline of your electric vehicle, and it is essential to keep it protected. Store the cable in a dry place, preferably a storage bag. Moisture in the contacts will result in the cable not working. Suppose this happens place the cable in a warm and dry place for 24 hours. Avoid leaving the cable outside where the sun, wind, dust, and rain can get to it. Dust and dirt will result in the cable not charging. For longevity, ensure that your charging cable is not twisted or excessively bent during storage.
The Level 2 portable charger EV cable J1772 is very easy to use and store. The cable is designed for both outdoor and indoor charging, and it has IP55 (Ingress Protection), which means that it has protection from dust and splash of water from any direction.
