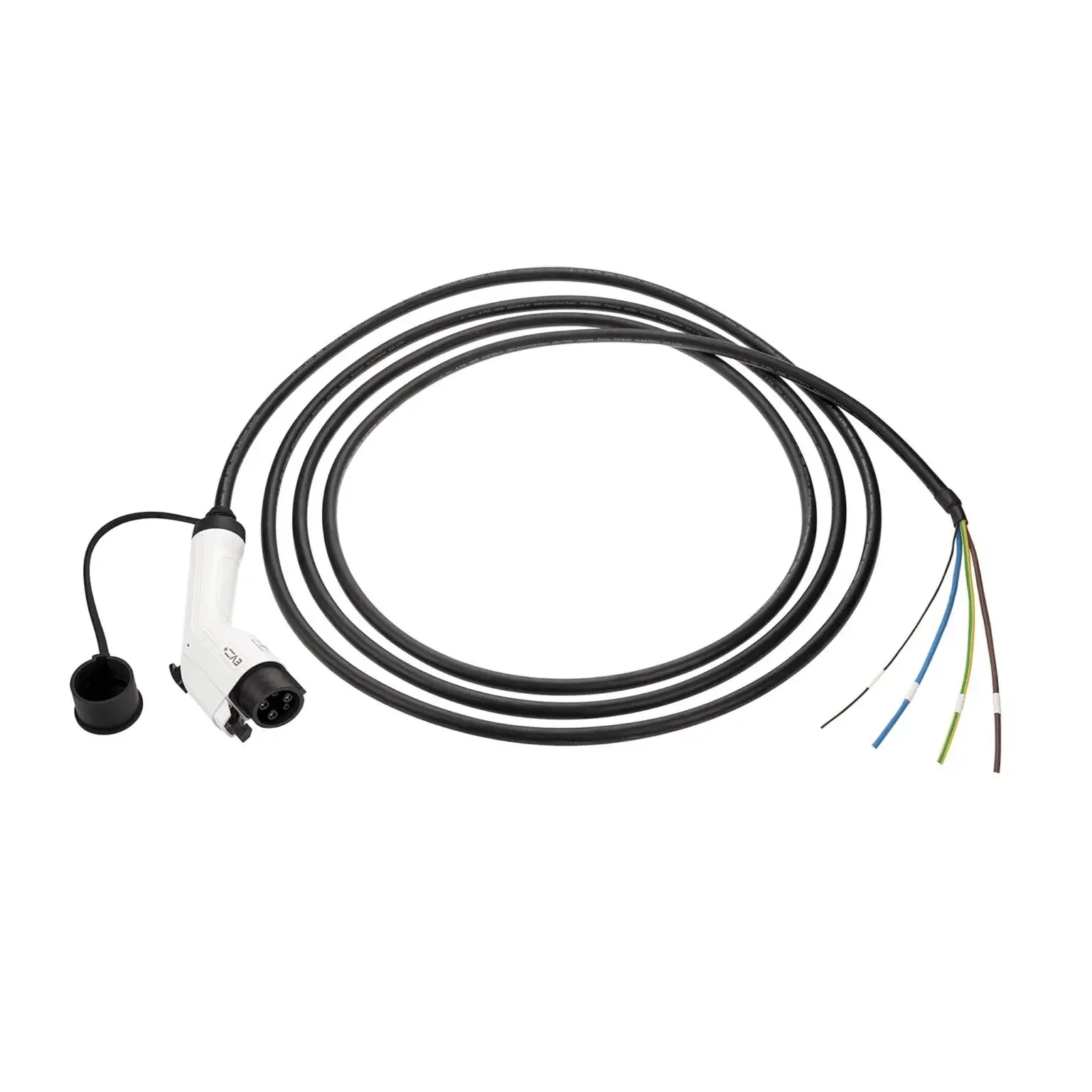

This SAE J1772 open-end replacement cable is to be integrated into the charging station. You can charge your EV/PHEV that has a J1772 port. The cable is 32 amperes, single-phase, and can charge your EV up to 7.2 kW. The product has a nice appearance, a hand-held ergonomic design, and is easy to use. The working length is 20 feet and made from thermoplastic material. It has a protection level of IP55 and is anti-flaming, pressure-resistant, abrasion-resistant, and impact resistant.

Suitable to connect with all private or public charging stations and for use outdoors or indoors. All open-end cables should be installed only by a certified electrician.

EV Charge+ 32A SAE J1772 replacement cable open end for EV charging station 32A

Name: EV Charge+ 32A SAE J1772 replacement cable open end for EV charging station 32A
Brand: EV Charge+
SKU: EN-WB-CC-RL-32-20F
Price: 149 USD
Availability: InStock

SKU: EN-WB-CC-RL-32-20F

$149.00

Excluding Sales Tax

Quantity

How to use:
Firstly, you will need to have a professional make the replacement of the cable correctly
Then, activate the charging station according to the instructions
Plug in the J1772 end of the cable to the electric vehicle
After the cable has clicked in place, you are ready to start the charge
How to care for the charging cable:
When you finish with the charge, always disconnect the cable from the car. The charging cable is the lifeline of your electric vehicle, and it is essential to keep it protected. Moisture in the contacts will result in the cable not working. If this happens, let the cable in a warm and dry place for 24 hours. If the cable is left outside, always use the protective lid. Dust and dirt will result in the cable not charging. For longevity, ensure that your charging cable is not twisted or excessively bent when not in use. The Open End EV Charging Cable Replacement Type 2 32A 1 Phase 20Ft has IP 55. Therefore, this means that it has protection from dust and splash of water from any direction.

Weight	5.5 lbs
Dimensions	16 × 12 × 4 in
Manufacturer	EV+ (China)
Power	7.2 kW
Maximum Current	32 A
Power Supply	1-Phase
Operational Voltage	240 V/AC
SPEC	3G6.0mm²+2×0.5mm²
Degree of Protection	IP55
Vandalism-Proof	No
UV Resistant	Yes
Certificate	CE
Cable Material	Thermoplastic
Warranty	12 Months
